ANGLE HAND HELD

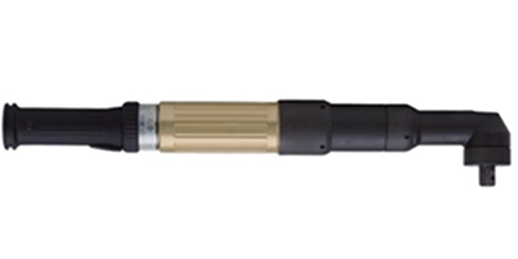

Right Angle Hand Held Nutrunners are available in sizes from 3.8 — 300 Nm. Optional sliding spindles, offset gearing and tube nut heads are available. Tools may be hung or mounted by using a clamp collar.
| Model | Pin Lock Sq. Drive | Controller | Torque Range (Nm / ft*lb) |
Speed (rpm) |
Width (mm) |
Body Length (mm / in) |
Weight (kg / lb) |
Square Drive | 2-D Print (pdf) |
2-D Drawing (dxf) |
3-D Model (stp) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HFT-015M50-A1-20 | HFT-015M50-A1-20-P | MFC-B024A |
3.8 – 15 / 2.8 – 11.1
|
1215 | 28 |
369 / 14.53
|
1.6 / 3.53
|
3/8″ | HFT-015M50-A1-20.pdf | HFT-015M50-A1-20.dxf | HFT-015M50-A1-20.stp |
| HFT-025M80-A1-20 | HFT-025M80-A1-20-P | MFC-B024A |
6.3 – 25 / 4.6 – 18.4
|
1070 | 28 |
389 / 15.31
|
1.7 / 3.75
|
3/8″ | HFT-025M80-A1-20.pdf | HFT-025M80-A1-20.dxf | HFT-025M80-A1-20.stp |
| HFT-040M80-A1-20 | HFT-040M80-A1-20-P | MFC-B024A |
10 – 40 / 7.4 – 29.5
|
648 | 36 |
414 / 16.3
|
1.93 / 4.25
|
3/8″ | HFT-040M80-A1-20.pdf | HFT-040M80-A1-20.dxf | HFT-040M80-A1-20.stp |
| HFT-060M80-A-20 | HFT-060M80-A-20-P | MFC-B024A |
15 – 60 / 11.1 – 44.3
|
446 | 36 |
414 / 16.3
|
1.95 / 4.3
|
1/2″ | HFT-060M80-A-20.pdf | HFT-060M80-A-20.dxf | HFT-060M80-A-20.stp |
| HFT-080M120-A-20 | HFT-080M120-A-20-P | MFC-B024A |
20 – 80 / 14.8 – 59
|
557 | 41 |
459.8 / 18.1
|
3 / 6.61
|
1/2″ | HFT-080M120-A-20.pdf | HFT-080M120-A-20.dxf | HFT-080M120-A-20.stp |
| HFT-130M120-A-20 | HFT-130M120-A-20-P | MFC-B024A |
32.5 – 130 / 24 – 95.9
|
316 | 45 |
484.8 / 19.09
|
3.3 / 7.28
|
1/2″ | HFT-130M120-A-20.pdf | HFT-130M120-A-20.dxf | HFT-130M120-A-20.stp |
| HFT-200M120-A-20 | HFT-200M120-A-20-P | MFC-B024A |
50 – 200 / 36.9 – 147.5
|
206 | 55 |
512.3 / 20.17
|
3.7 / 8.16
|
5/8″ | HFT-200M120-A-20.pdf | HFT-200M120-A-20.dxf | HFT-200M120-A-20.stp |
| HFT-300M120-A-20 | HFT-300M120-A-20-P | MFC-B024A |
75 – 300 / 55.3 – 221.3
|
144 | 67 |
586 / 23.07
|
6.2 / 13.67
|
3/4″ | HFT-300M120-A-20.pdf | HFT-300M120-A-20.dxf | HFT-300M120-A-20.stp |
