Linear technology for micron level tolerances and excellent surface finishes.
For years, tool, die, and mold makers have relied on EDM to produce tools in hardened steels that were difficult or impossible to machine. While EDM is certainly up to the job, it adds an extra step to the metal cutting process. And with the constant pressure you’re under to cut lead times and streamline processes, we thought that was just one step too many.
To boost productivity on high-precision, high-quality jobs, you need a tool that knows how to deliver accuracy, quality, precision, and speed—all at the same time.
The Android II is that tool: a well-built machine that brings together the latest advances in cutting power, working speed, rigid design, heat dispersal, and flexible operation to ensure precise work and high speeds.
TOP-SPEED PRODUCTION CAPABILITIES
- High-speed machining technology has progressed rapidly over the last few years and is ready to take on this task using high-RPM spindles, extremely accurate linear motor servo drive systems, and high-speed machine controllers. The Android II is a machining center designed from the ground up for extremely precise, hard-steel machining at high spindle speeds and high traverse rates.
RELIABLE BY DESIGN
- The Android II’s heat-symmetric basic frame structure with a high-grade cast iron base ensures twist rigidity against spindle head motion. Its structure guarantees a reduction in thermal displacement, leading to a balance of high rigidity and a reduced weight. The two horizontally opposed, flat linear motors equipped with powerful magnets ensure clearance in the side-ways, canceling out any attraction forces.
The system’s dual-layer cooling system combines direct forced-oil cooling with a wide-range jacket to separate the spindle head from the casting. Leading to complete heat isolation, the double cooling system positioned between the heat-generating coils is matched by an in-line oil chiller unit to ensure complete control of the coolant temperature. Hot air will never collect at the spindle thanks to the Android II’s centralized exhaust and outside airflow system.
FINE WORK AT ANY SKILL LEVEL
- Coupled with the Fanuc 31i-B5 CNC controller, the Android II is an exceptionally well-built machine tool that can be operated by users of nearly any skill level. With ten (10) preprogrammed machining modes available, your operators can produce great results with unsurpassed speed and accuracy—even in the most complex 3D contours.
COMPONENTS:
- X, Y, and Z axis linear motor drive system
- Z axis thermal growth compensation
- Special precision roller-type linear motion ways
- Auto lubrication
- Full enclosure
- Special way covers reduce motion resistance
- 60,000-RPM integral motor spindle
- Spindle chiller
- Non-contact tool measurement (Blum laser) with air blow
- 53-gallon (200L) coolant tank
- 20-position automatic tool changer
- X, Y, and Z Axis (0.5 NANO meter resolution) linear scales
- Tool tightening block
- Automatic power shutdown circuit
- Work washer gun
- Air purge
- 4” color monitor
- 2-stage patrol lamp (yellow, red)
- Manual handle feed
- One machine lamp (LED)
- Tool box
- Maintenance kit
- Leveling bolts and pads
USER INTERFACE:
Fanuc 31i-B5 Control Features
- Super PC X + function (10-mode operation)
- AI Contour Control II, high-speed processing, nano smoothing, and look-ahead block expansion
- Editable data server with 2GB program storage (flash card type)
- Ethernet with TCP/IP protocol & RS232 communications
- 320 meter memory (128KB)
- 160 meter memory (64KB)
- Custom macro B
- Parts count & run hour display
- Helical interpolation
| Model | ANDROID II |
|---|---|
| Machine Travels: X x Y x Z in (mm) | 17.7 x 13.8 x 7.9 (450 x 350 x 200) |
| Spindle Speed | 3,000 ~ 60,000 RPM |
| Table Size X- Y: in (mm) | 21.6 X 13.8 (550 X 350) |
| Spindle HP | 5.0 |
| Spindle Lubrication | Oil Mist |
| Spindle Taper | 1/10 taper (Two-plane constraint) |
| Tool Shank | HSK-E25 |
| Tool Changer Size | 20 Position Standard (Optional: 40, 60, 100) |
| Positioning Accuracy/Repeatability: in (μm) | ±0.000039/±0.0000079 (±1.0/±0.2) Full Stroke |
| Table to Spindle Nose Distance: in (mm) | 3.15 ~ 11.02 (80 ~ 280) |
| Max. Workpiece Weight: lb (kg) | 220 (100) |
| Table Height from Floor: in (mm) | 29.5 (750) |
| 745 Hole Positioning Accuracy: in (μm) | ±0.00006 (±1.5) |
| Spindle Air Purge | Standard |
| Air Blast through Spindle | NA |
| Oil Mist with Collector | Optional |
| Linear Scales X, Y, Z – axes | Heidenhain 0.002µm (2nm) Standard |
| Rapid Traverse Speed: in/min. (m/min.) | 590 (15) |
| Cutting Speed (Normal Mode): in/min. (mm/min.) | 0.04 – 394 (1 ~ 10,000) |
| Cutting Speed (GR Super PC Mode): in/min. (m/min.) | 590 (15) |
| Dust Collection System | NA |
| Coolant Tank Capacity: gal (L) | 52.8 (200) |
| Machine Weight: lb (kg) | 12,787 (5800) |
| Machine Height: in (mm) | 94.9 (2410) |

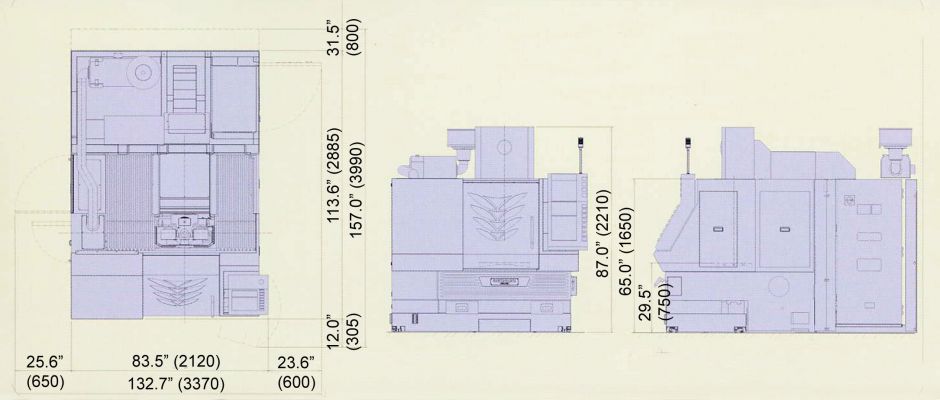

| Required Floor Space [Mach. Unit]: in (mm) | 83.0 x 113.4 (2110 x 2880) |
| Control Unit | Fanuc 31i-B5 Super High-Speed Processor and Al Contour Control II and Super PC X Function |
| Power Requirements KVA | 200 ~ 220V 19.0 kVA |
| Air Supply | 9 cu.ft./min @ 72 psi |
