GX-F ADVANCED Series

The Mitsubishi GX-F ADVANCED Series is a two-dimensional fiber laser that uses advanced AI and assist-gas technologies to deliver powerful, efficient, and precise cutting.

  • Intelligent Automation: Built-in AI and augmented reality (AR) features simplify operation, reduce setup time, and automatically optimize cutting parameters and speeds in real time. The machine even automatically replaces defective nozzles for continuous processing.

  • Reduced Gas Consumption: Mitsubishi’s proprietary AGR-MIX nozzle technology improves cut quality while significantly reducing nitrogen and other assist-gas consumption by blending it with low-pressure air, lowering operating costs.

  • Advanced Capabilities: A zoom cutting head adjusts the beam for different materials and thicknesses, reducing piercing time by up to 60%. The M800 user interface with a 19-inch touchscreen provides intuitive, smartphone-like controls.

  • Seamless Integration: Designed for easy integration with automation and parts sorting systems, the GX-F ADVANCED Series supports a variety of fabrication needs.

  • Reliable Support: With major components designed and built by Mitsubishi, the system offers a single source for service and support, backed by robust warranties.

Available in power levels from 4 kW to 20 kW.

GX-F ADVANCED Series

• User-friendly, smartphone-like controls
• Major components built by Mitsubishi
• High processing stability with superior beam-quality consistency
• Beam cleaning and anti-back reflection technology
• Faster processing and more stable processing
• Reduced operator input
• No setup time between materials
• Lower operating cost translates into higher profitability
• Longer consumables life
• No material-surface scratching
• Optimized cutting speed
• On-site or remote monitoring of cutting process
• Reduced piercing time
• Remote diagnostics and predictive maintenance
• Single-source, robust training, service and support
• Easy integration with automation systems
• Five-year oscillator parts warranty
• Two-year machine tool warranty
• Two years of remote360™, Mitsubishi’s advanced machine monitoring system
• Installation and training

USER INTERFACE
The intelligent M800 control offers a generous 19-inch user interface. The status of the machine and job can be displayed simply on one screen or as a detailed analysis, whichever the operator desires.

Key features include:

• Intuitive, user-friendly operation similar to a smartphone
• Customizable home screen
• Real-time condition adjustment and correction
• Intelligent cutting assist
• Simple multi-part nesting
• Online job scheduling and runtime estimator
• Automatic sheet detection
• Scrap cutting
• Real-time tracking of electric and assist gas consumption
• Micro-tabbing on the fly
• Advanced help and maintenance screens
• The operator can monitor the cutting process from the machine or remotely

Machine Specs
Available Platform ML 3015 GX-F ADVANCED ML 4020 GX-F ADVANCED
Machine Structure Weld Bonded Chassis with Precision Helical Rack & Pinion, Direct Drives
X – Axis Stroke 122.0” (3100mm) 161.41” (4100mm)
Y – Axis Stroke 61.61” (1565mm) 82.67” (2100mm)
Z – Axis Stroke 4.72” (120mm) 4.7” (120mm)
Maximum Work Piece Size 120.1” (3050mm) x 60.0” (1525 mm) 159.44” (4050mm) x 81.10” (2060mm)
Maximum Processing Feed Rate 3937 in/min (100 m/min) 3937 in/min (100 m/min)
Maximum Work Piece Weight 2094 lbs. (950 kg) 3637 lbs. (1650 kg)
Table Pass Height 35” (890 mm) 35” (890mm)
Rapid Travel Speed 6700” (170 m/min) simultaneous 6700” (170 m/min) simultaneous
Positioning Accuracy 0.0019”/20” (0.05/500 mm) 0.0019”/20” (0.05/500 mm)
Repeatability ±0.00039” (0.0099 mm) ±0.00039” (0.0099 mm)

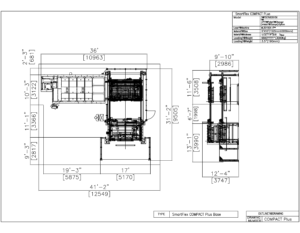

Machine Unit Dimensions 415.0” (10541mm) x 135.0” (3429mm) 487” (12376mm) x 140” (3560mm)
Machine Weight (No Pallet Changer) 15432 lbs. (7000 kg) 20943 lbs. (9500 kg)
Pallet Changer Weight 5291 lbs. (2400 kg) 8900 lbs. (4037 kg)
Oscillator Specs
Manufacturer Mitsubishi Electric Mitsubishi Electric
Excitation Method Ytterbium Doped Fiber Ytterbium Doped Fiber
Wavelength 1.07µm 1.07µm
Available Output Power (CW) 4 kW , 6 kW, 8 kW, 10 kW, 12 kW, 16 kW, 20 kW 4 kW , 6 kW, 8 kW, 10 kW, 12 kW, 16 kW, 20 kW
Processing Head Zoom Zoom

Designed by Mitsubishi engineers and built with Mitsubishi components, the GX-F Series is one of the only laser cutting systems in the industry with a single source for service and support.
