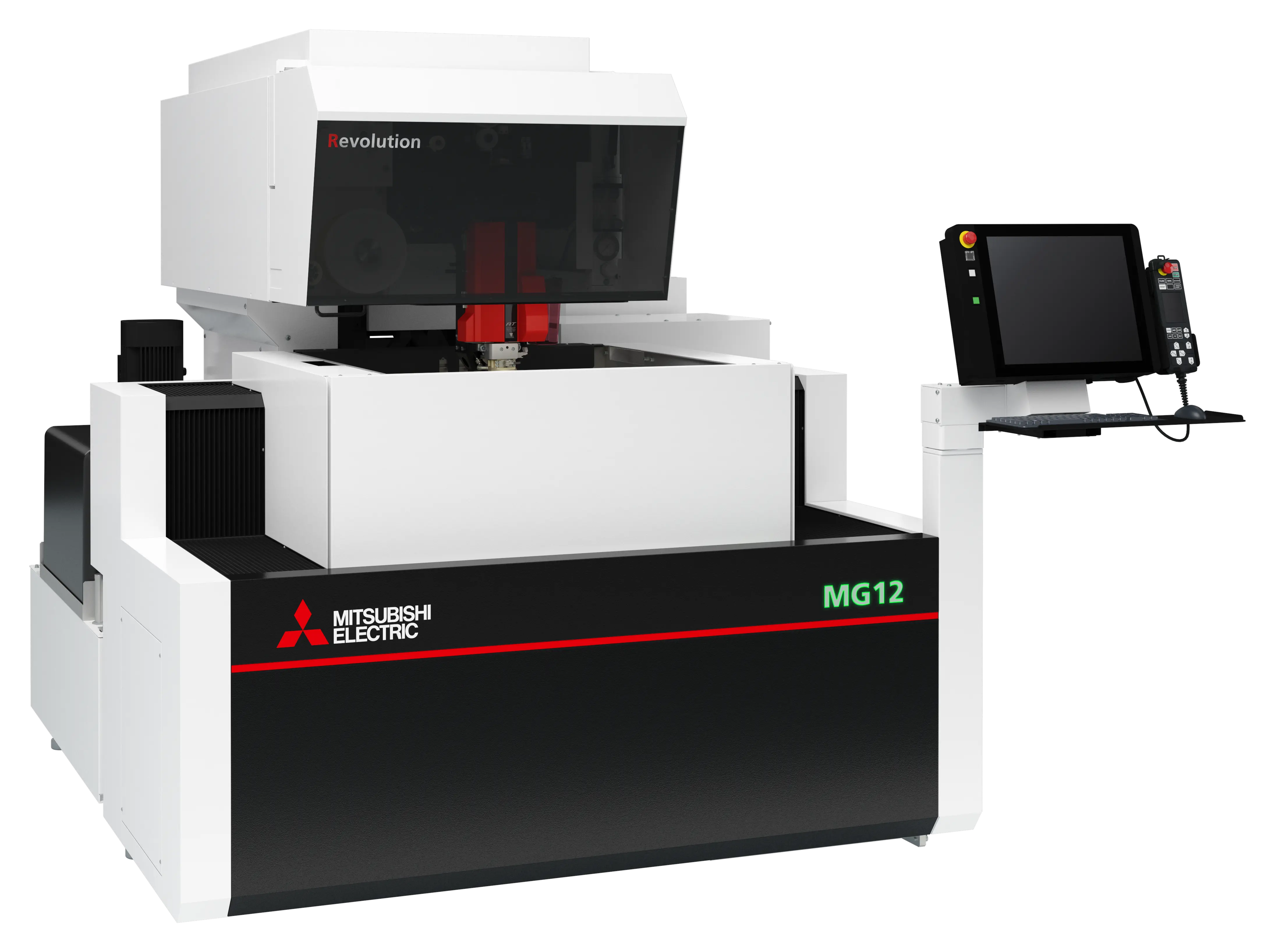

MG12R CNC WIRE EDM with M800 CONTROL

  • New “Thermal Buster” Thermal Stability System circulates fluid through key areas of the machine structure while maintaining constant temperature.
  • New UFS circuit (Ultra Fine Surface) produces surface finishes down to a 4µin Ra
  • New Pitch Adjustment function is designed to bridge the gap between factory calibration and real-world shop floor environment providing ultra-high pitch accuracy.
  • New Seal Plate cleaning system uses forced water to prevent sludge buildup away from the seal plate reducing maintenance.
  • New Improved iAT Automatic Wire Threading uses a redesigned wire-feeding system and new annealing control to maintain stable threading performance while requiring fewer maintenance cycles.
  • New Invertor controlled circulation and filter pumps reduce energy consumption up to 30% than the previous model.
  • Linear Shaft Motor Drive with 10-Year positioning guarantee and glass scale feedback insure friction free, highly accurate column movement.
MG12R

  • Produces surface finishes down to a 4µin Ra.

  • Bridges the gap between factory calibration and real-world shop floor environment to provide ultra-high pitch accuracy.

  • Maintains constant temperature across the machine structure.

  • Prevents sludge buildup away from the seal plate to reduce maintenance.

  • Maintains stable wire threading performance with fewer maintenance cycles.

  • Reduces energy consumption up to 30% compared to the previous model.

  • Ensures friction-free, highly accurate column movement.

  • Increases cutting speeds.

  • Enables lights-out operation capability.

  • Allows automatic part alignment and on-machine part inspection via optional touch probe.

  • UFS (Ultra Fine Surface) circuit.

  • Pitch Adjustment function.

  • “Thermal Buster” Thermal Stability System circulating fluid through key machine areas.

  • Forced-water Seal Plate cleaning system.

  • iAT Automatic Wire Threading with redesigned wire-feeding and annealing control.

  • Inverter-controlled circulation and filter pumps.

  • Linear Shaft Motor Drive with glass scale feedback.

  • 10-Year positioning guarantee.

  • 19-inch touch-panel screen, keyboard, and mouse.

  • M800 control featuring Maisart (Mitsubishi Artificial Intelligence).

  • 4-sided, 4-piece table with 76 x M8 mounting points.

  • Optional touch probe system (Renishaw Automatic Style or Detachable Manual Style).

Machine Specifications Unit MG12R
Machine Max Workpiece Dimensions (WxDxH) in 31.9 x 27.6 x 8.5
Max Workpiece Weight lbs 1,100
Table Dimensions (3-sided) in 25.2 x 21.3
Machining Range (X x Y x Z) in 15.7 x 11.8 x 8.7
Wire Dia. by AT Device in .004 – .012 (.002″ optional)
Wire Tension g 200-2,550
Automatic Wire Threader Standard
Min. Start Hole Dia. in 0.02
Taper Machining Unit Standard
Taper Unit Travel (U x V) in ±2.36 x ±2.36
Max. Taper Angle degree 15 deg @ 8″ Thickness
Overall Machine Dimensions (W x D x H) in 79.7 x 106.4 x 79.3
Fluid System Machine Weight lb 5,940
Tank Capacity gal. 145
Filtered Particle Size microns 3
Filter Elements ea 4 / Paper
Ion Exchange Resin cu/ft 1.4
Overall Dimensions in Included in machine weight
Dry Weight lbs Included in machine weight
