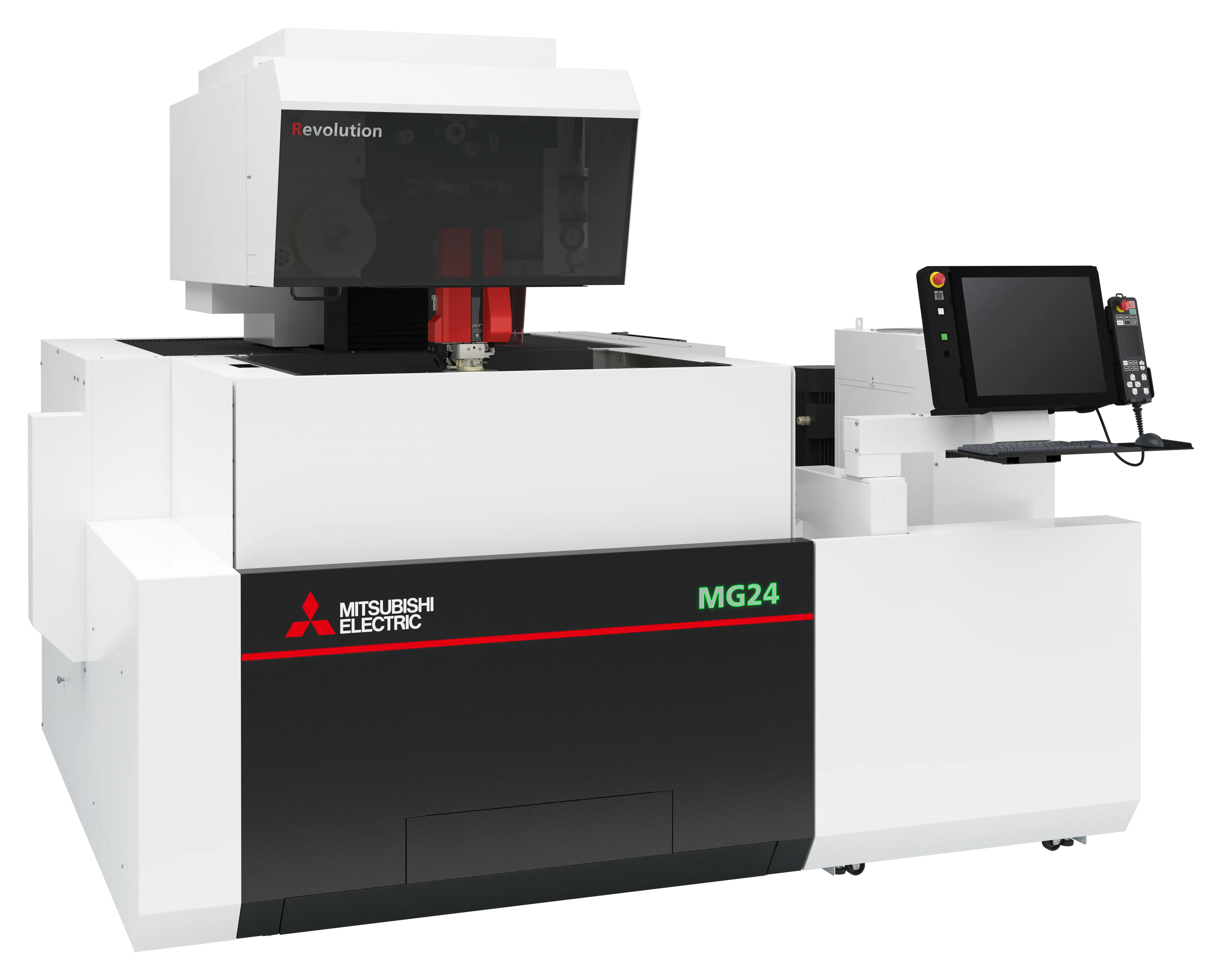

MG24R CNC WIRE EDM with M800 CONTROL

  • New “Thermal Buster” Thermal Stability System circulates fluid through key areas of the machine structure while maintaining constant temperature.
  • New UFS circuit (Ultra Fine Surface) produces surface finishes down to a 4µin Ra
  • New Pitch Adjustment function is designed to bridge the gap between factory calibration and real-world shop floor environment providing ultra-high pitch accuracy.
  • New Improved iAT Automatic Wire Threading uses a redesigned wire-feeding system and new annealing control to maintain stable threading performance while requiring fewer maintenance cycles.
  • New Invertor controlled circulation and filter pumps reduce energy consumption up to 30% than the previous model.
  • Linear Shaft Motor Drive with 10-Year positioning guarantee and glass scale feedback insure friction free, highly accurate column movement.
MG24R

  • UFS circuit produces surface finishes down to 4µin Ra.

  • Pitch Adjustment function bridges the gap between factory calibration and real-world shop floor environment to provide high pitch accuracy.

  • Thermal Buster maintains constant temperature across machine structure synchronized with dielectric fluid temperature.

  • Maintains stable threading performance while requiring fewer maintenance cycles.

  • Reduces energy consumption up to 30% compared to previous models.

  • Insures friction-free, highly accurate column movement.

  • Increased cutting speeds.

  • Reduced maintenance cycles.

  • Lights-out operation capability.

  • Allows for automatic part alignment and on-machine part inspection via optional touch probe.

  • UFS (Ultra Fine Surface) circuit.

  • Pitch Adjustment function.

  • “Thermal Buster” Thermal Stability System circulating fluid through key machine structure areas.

  • Improved iAT Automatic Wire Threading with redesigned wire-feeding system and new annealing control.

  • Inverter-controlled circulation and filter pumps.

  • Linear Shaft Motor Drive with glass scale feedback.

  • 10-Year positioning guarantee.

  • 19-inch touch-panel control screen, keyboard, and mouse.

  • M800 control featuring Maisart (Mitsubishi Artificial Intelligence).

  • Optional touch probe system (Renishaw Automatic Style or Detachable Manual Style).

  • 4-sided 4-piece table design with 92 x M8 mounting points.

Machine Specifications Unit MG24R
Machine Unit Max Workpiece Dimensions (WxDxH) in 41.3 x 32.3 x 12
Max Workpiece Weight lbs 3,307
Table Dimensions (3-sided) in 33 x 25.2
Machining Range (X x Y x Z) in 23.6 x 15.7 x 12.2
Wire Dia. by AT Device in .004-.012 (.002″ optional)
Wire Tension g 200-2,550
Automatic Wire Threader Standard
Min. Start Hole Dia. in 0.02
Taper Machining Unit Standard
Taper Unit Travel (U x V) in ±3 x ±3
Max. Taper Angle degree 15 deg @ 10.25″ Thickness
Overall Machine Dimensions (W x D x H) in 105.8 x 119.3 x 84.6
Fluid System Machine Weight lb 7,700
Tank Capacity gal. 227
Filtered Particle Size microns 3
Filter Elements ea 4 / Paper
Ion Exchange Resin cu/ft 1.4
Overall Dimensions in 37.1 x 91.4 x 35
Dry Weight lbs 770
