EAGLE V5S-5X

High-speed, high-precision 3- and 5-axis machining for small graphite electrodes, mold/die components, and more—all in a small form factor.

There’s nothing more frustrating than pouring time, energy, and resources into a machine fleet that—despite your best efforts—just can’t seem to return the favor. Then you throw the new challenges facing today’s machine shops into the mix: things like an ever-shrinking skilled labor pool, the need to be faster and more efficient than ever via automation, and other thorny problems.

Relief for the challenging issues facing your machine shop comes on swift wings—in the form of the high-speed Eagle V5.

Eagle V5C (5-AXIS)

HEAVY-DUTY PERFORMANCE YOU CAN COUNT ON

  • Built and designed highly rigid and incredibly precise, the Eagle V5 gantry-type 5-axis VMC is one machine your workers, your customers, and your bottom line can all count on. Whatever the job or timeline, you can trust the Eagle line’s superior craftsmanship and components to carry the day.

EASY, INTUITIVE OPERATION THAT MAKES A DIFFERENCE

  • The Eagle V5 comes with an advanced CNC control unit designed to help your workers get the most out of your investment—both in the short term and well into the future. Easy to train and easy to operate, the V5 brings efficient, cost-effective labor to the middle of your shop floor.

FLEXIBLE, FUTURE-FRIENDLY DESIGN

  • Automation isn’t just a buzzword. It’s your ticket to new levels of efficiency and profitability for your business. That’s why every machine in our Eagle line is prepared for automation—as a single machine, inside a standalone cell, or as part of a full, integrated manufacturing line.

The Eagle V5 is designed to be an ultra-rigid 5-axis vertical machining center with the capacity to handle a 550-pound workpiece on a 15.75” table surface. The Heidenhain iTNC-640 control unit is mounted on a moveable pedestal for optimal positioning convenience. The Eagle V5 is designed with a side opening in the casting to allow robot loading from the right side with pallets up to 15.7” square.



CAPABILITIES:

  • Can handle a 550-pound workpiece on a 15.75” table surface
  • Allows robot loading from the right side with pallets up to 15.7” square via side opening design
  • Achieves high machine rigidity, working precision, and finish quality via U-shape polymer concrete base, with B axis support and a high-quality rotary table C axis
  • Hits high working speeds via 42,000-RPM integrated spindle, heavy-duty, roller-type linear guideways, and large-diameter ball screws and linear glass scales in both the X and Y axis
  • Performs high-precision cuts with the X, Y, Z, B, and C axis moving simultaneously
  • Can easily handle surface machining, spiral contour machining, irregular contour machining, and other complex cutting tasks
  • Superior drive mobility and power efficiency compared to conventional worm gear setup machines thanks to the zero-backlash B axis gear and C-rotary axis direct drive motor with rotary encoders



COMPONENTS:

  • Integrated 4/5-axis system (without T-slot table)
  • Travels: X, Y, and Z: 21.6” x 15.7” x 15.7”
  • Rapid traverse: 1181 in/min. (X, Y, and Z)
  • Maximum acceleration: 49 ft/s²
  • HF spindle 20 HP, 42,000 RPM, HSK-E40, and 32-pos ATC (100 optional)
  • Renishaw infrared measuring probe
  • Blum laser system for tool breakage detection and tool length/diameter compensation
  • Vibration-dampening polymer concrete machine bed
  • 3-point foundation setup/leveling
  • Ball screws with direct drive AC motors
  • Absolute measuring with glass scales
  • Oil-mist lubricant system, spindle external
  • 3-color status light
  • Chip auger with transverse conveyor screw
  • Chip bucket
  • Precision package 3- for 5-axis machines – Temperature-distribution compensation, including:
    • ATDC (Automatic Temperature Drift Control)
    • 5-axis compensation
    • Heidenhain option (kinematics optional)
    • Ceramic ball for kinematics accord

USER INTERFACE:

  • Heidenhain iTNC-640 HSCi 5-axis simultaneous control

OPTIONAL ACCESSORIES:

  • 100-position ATC
  • Table clamping and pallet systems from EROWA, Hirschmann, and system 3R
  • ICS 2 ATS internal coolant supply with aerosol/dry lubrication
  • T-Slot table to cover the 4/5-axis (converts the machine to 3-axis operation)
  • Keller exhaust system for graphite and mist collection
  • Oil-mist suction unit
  • Chip conveyor for dry milling (incl: chip bucket)
  • Multichange Easy Basic Unit (incl: gripper, 40-pos or 5-pos or 4-pos magazine, workpiece change place, and connection to machine)

Machine Travels: X x Y x Z in (mm) 21.6 x 15.7 x 15.7 (550 x 400 x 400)
B-Axis Tilt Range (degree) -120 ~ 60 degrees
C-Axis Rotation Range (degree) 360 degrees
Spindle Speed 42,000 RPM
Max Rotary Table Cap: dia. x height/lb. (mm/kg) 15.7 x 14.9 / 550 (400 x 380 / 250)
Spindle HP (cont./30 min) 20 HP (15 kw)
Spindle Nose to Table: in (mm) 2.0 ~ 17.7 (50 ~ 450)
Tool Changer Selection HSK-E40 (32 pos std) / (100 pos optional)
Max Workpiece 3-Axis / in/lb. (mm/kg) X 21.6 x Y 15.7 x Z 15.7 / 1102 ( 550 x 400 x 400 / 500)
Machine Weight: lb. (kg) 15,873 (7,200)

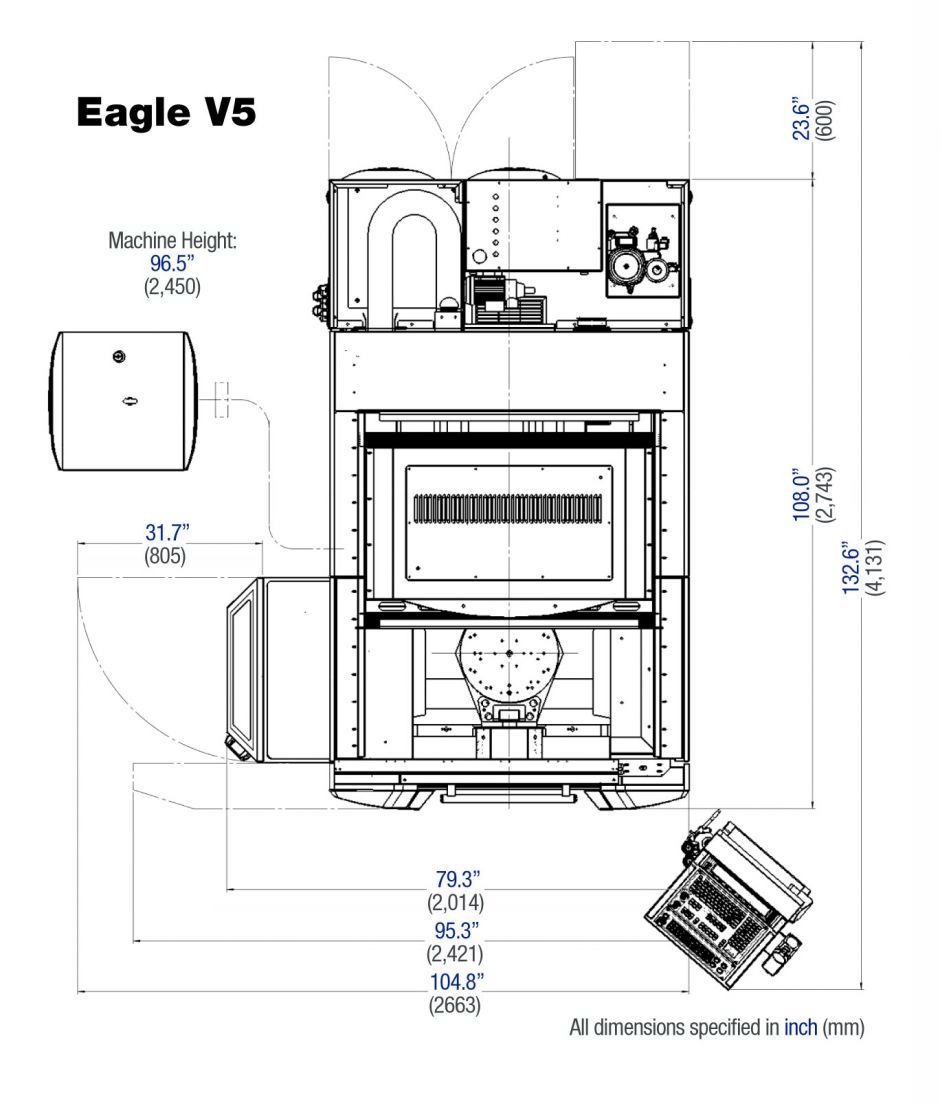

Mach Dimensions W-D-H: in (mm) 79.5 x 110.2 x 96.5 (2,020 x 2,800 x 2,450)
